Description:

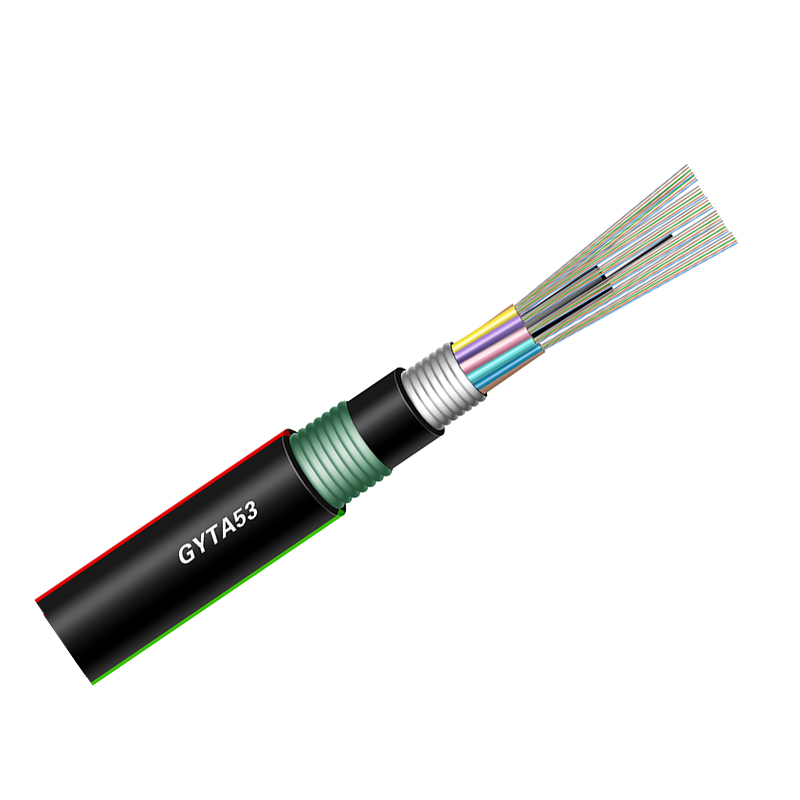

Outdoor Armored Optical Fiber Cable Double Jacket Fiber Optic Cable GYTA53

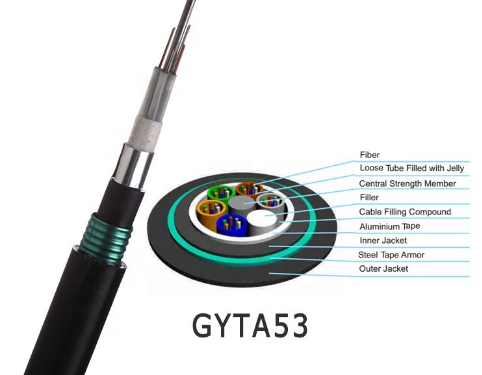

Outdoor Armored Optical Fiber Cable GYTA53 ,200um or 250um Bare Fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core,After with a PE sheath.then the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Features:
.Good mechanical and temperature performance
.High strength loose tube that is hydrolysis resistant
.Loose tube filling compound
.APL moisture barrier
.PSP enhancing moisture-proof
.Water-blocking materia
.Crush resistance and flexibility
.Special tube filling compound ensure a critical protection of fiber
.The following measures are taken to ensure the cable watertight:
.Steel wire used as the central strength member
Application:
.Long distance and local area network(LAN) communication.
.Aerial & conduit/duct application.

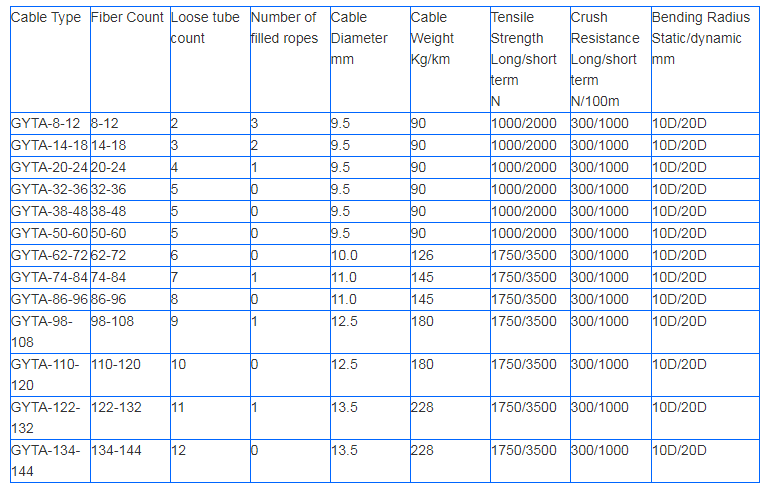

Technical Parameters:
