Description:
Product Description
|

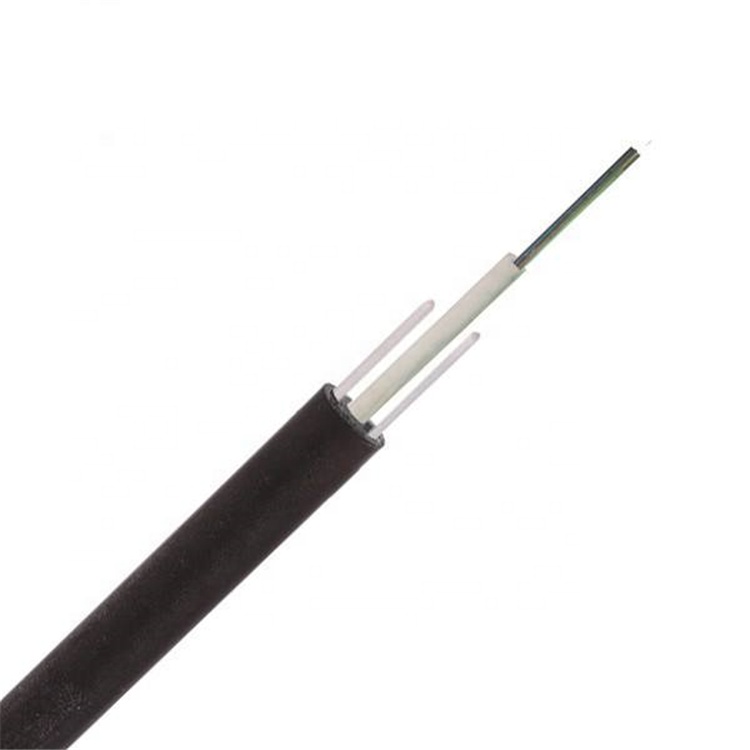

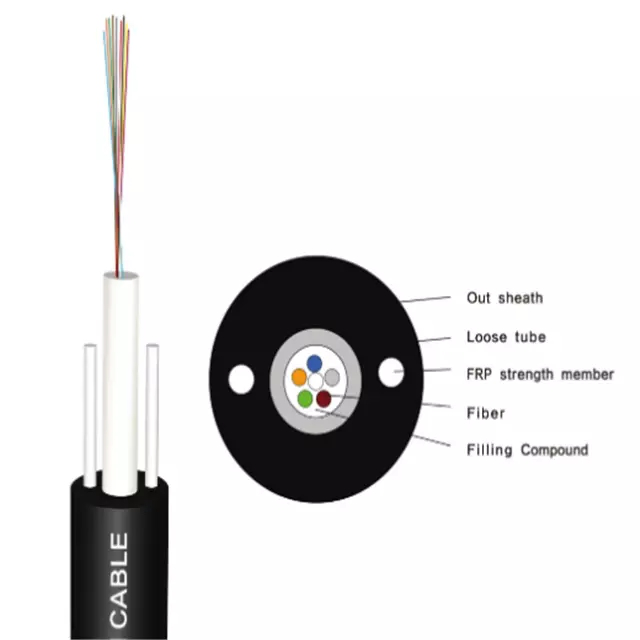

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath. |
Cable Parameters
| Items | Specifications | |
| Fiber Count | 12 | |
|
Colored Coating Fiber |
Dimension | 250µm±15µm |
| Color |
Blue,Orange,Green,Brown, Grey,Natural,Red,Black, Yellow,Purple,Pink,Aqua |
|
|
Loose Tube |
Dimension | 1.75mm±0.05mm |
| Material | PBT | |
| Color | Blue | |
|
Filler |
Dimension | 1.75mm±0.05mm |
| Material | PP | |
| Color | Natural | |
|
Central Strength Member |
Diameter | 1.5mm |
| Material | FRP | |
|
Outer Jacket |
Dimension | 9.2mm±0.3mm |
| Material | PE | |
| Color | Black | |
