Fiber Optic Bare fiber splitter

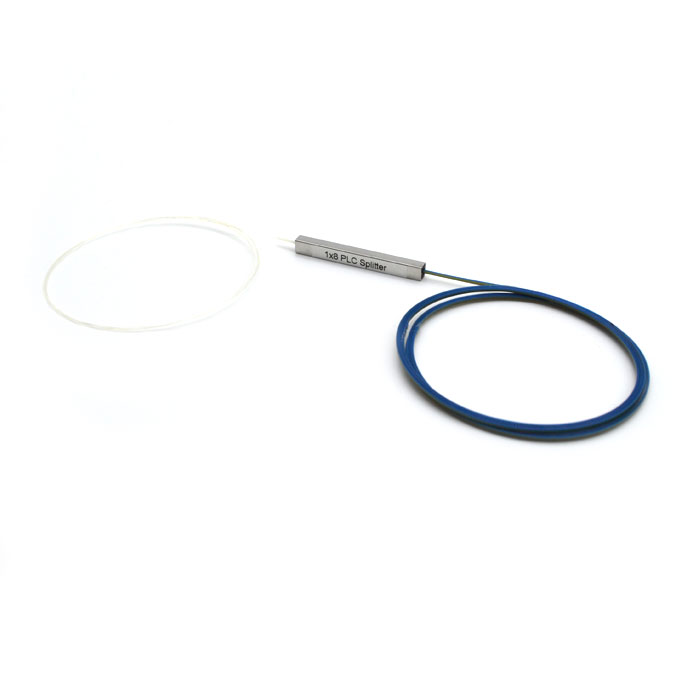

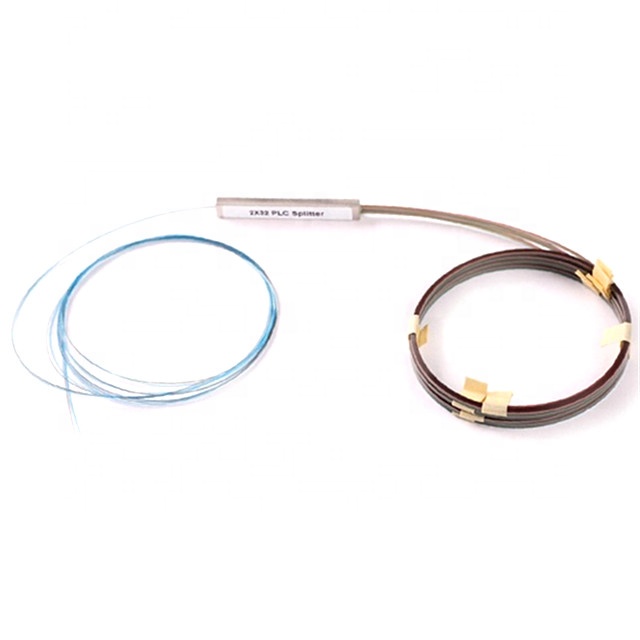

1x4 1x8 1x16 1x32 2x8 Bare Optical Fiber PLC Splitter

Feature:

Materials in line with the IEC standard connector
Distribution frame in the ODF to achieve sub-line
1.low insertion loss
2.high return loss
3.high isolation
4.low polarization dependent loss
5.Good direction
6.Good interchangeability
7.Powerful anti-environmental change

Application:

Optical Fiber Communication Systems
Optical Access Network
Fiber-optic CATV
Fiber Optic Test Equipment
Optical Fiber Sensor
Source distribution

Performance Specifications:


Parameters	1×2	1×4	1×8	1×16	1×32
Operating Wavelength (nm)	1310/1490/1550
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	17/17.4
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5
Temperature Stability (-40~85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5
Operating Temperature (℃)	-40~85
Storage Temperature (℃)	-40~85
Device Dimension (mm)	40×4×4	40×4×4	40×4×4	50×4×4	50×7×4
Module Dimension (mm)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18
Mini-Module Dimension (mm)	50×7×4	50×7×4	50×7×4	60×12×4	80×20×6
