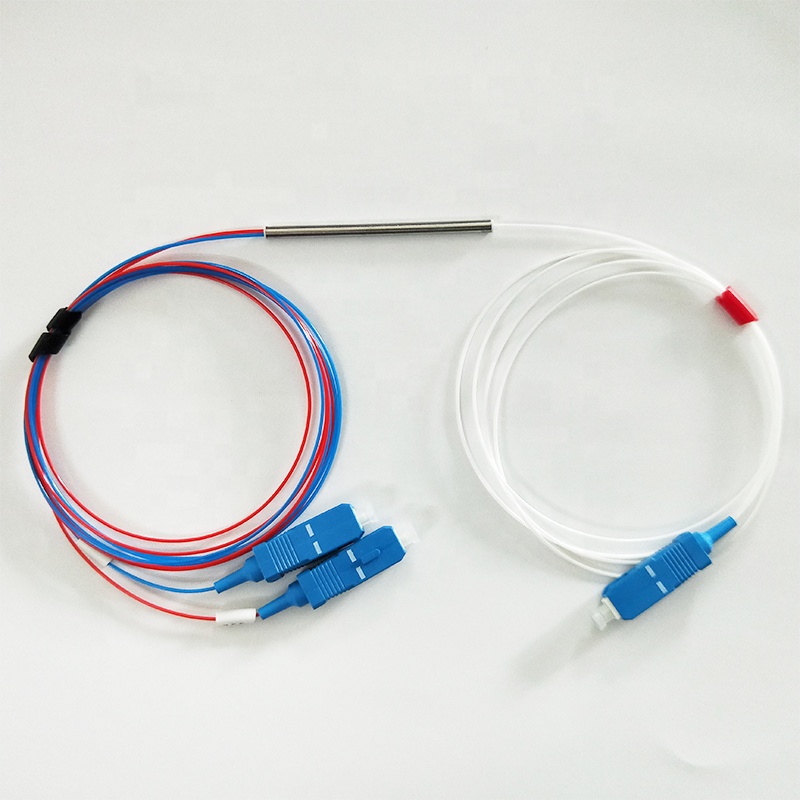

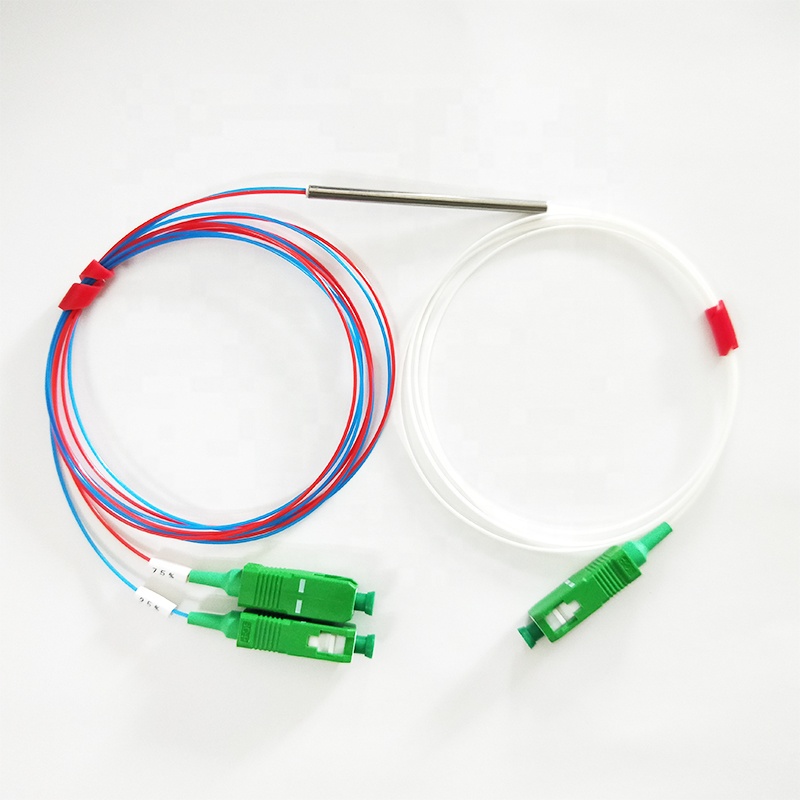

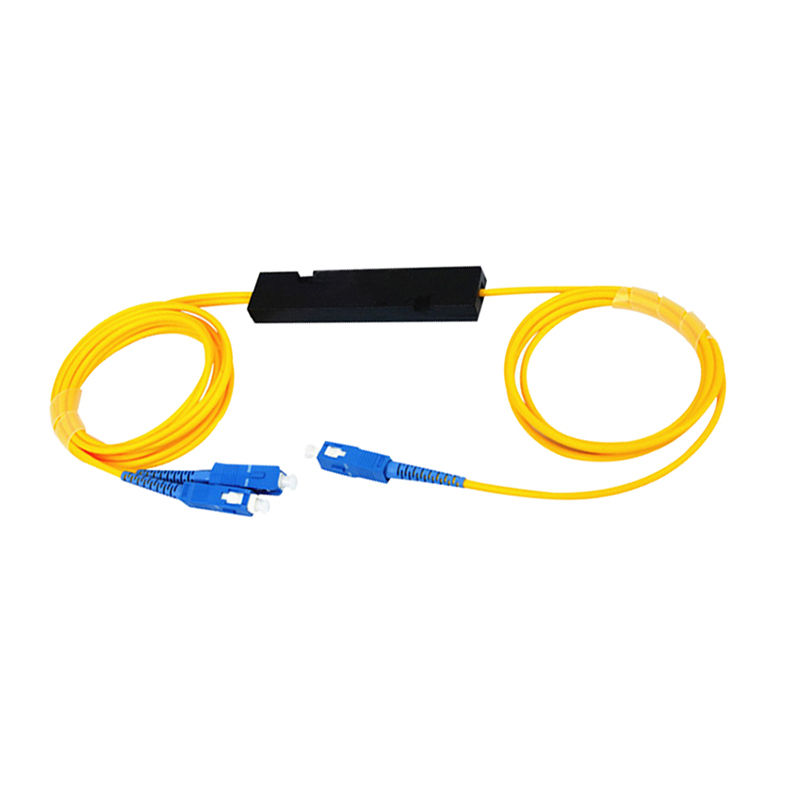

FBT splitter

Fused biconical taper (FBT) technology is tied to two or more fibers, and then melted in a cone machine, pull tensile and real-time
monitoring of changes in splitting ratio, melt tensile splitting ratio to meet the requirements end, wherein one end of a fiber optic
reserved ( The remaining cut off) as the input terminal and the other end a multitude of road outputs.

Features:

Low PDL
Compact Design
High Return Loss
Low Insertion loss
Uniform Power Splitting
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209

Applications:

CATV Systems
Test Equipments
FTTx (FTTB, FTTH, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)

Specifications:


Parameter		Value
Product Type		1×2/2x2	1×4/2x4	1×8/2x8	1×16/2x16	1×32/2x32	1×64/2x64	1×128/2x128
Wavelength(nm)		1260~1650
I.L(dB)	Typ.	3.6/4.2	7.1/7.2	10.4/10.6	13.6/13.8	17.2/17.5	20.1/20.5	25.0/25.2
	Max.	4.3/4.5	7.4/7.6	10.7/11.0	14.0/14.8	18.0/18.0	21.5/21.5	25.8/25.8
Uniformity(Max.)(dB)		0.5/0.8	0.8/1.0	1.0/1.2	1.4/1.5	1.6/1.8	2.0/2.5	2.6/3.0
PDL(Max.)(dB)		0.2/0.2	0.3/0.3	0.3/0.3	0.3/0.3	0.3/03	0.5/0.5	0.8/1.0
TDL(Max.)(dB)		0.5
R.L(dB)		≥50(APC)/≥50(UPC)
Directivity(dB)		≥55
Operating & Storage Temperature		-40~+85
Note: 1. All the data above does not include connectors. 2.UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB. 3.For more details, please contact our sales
