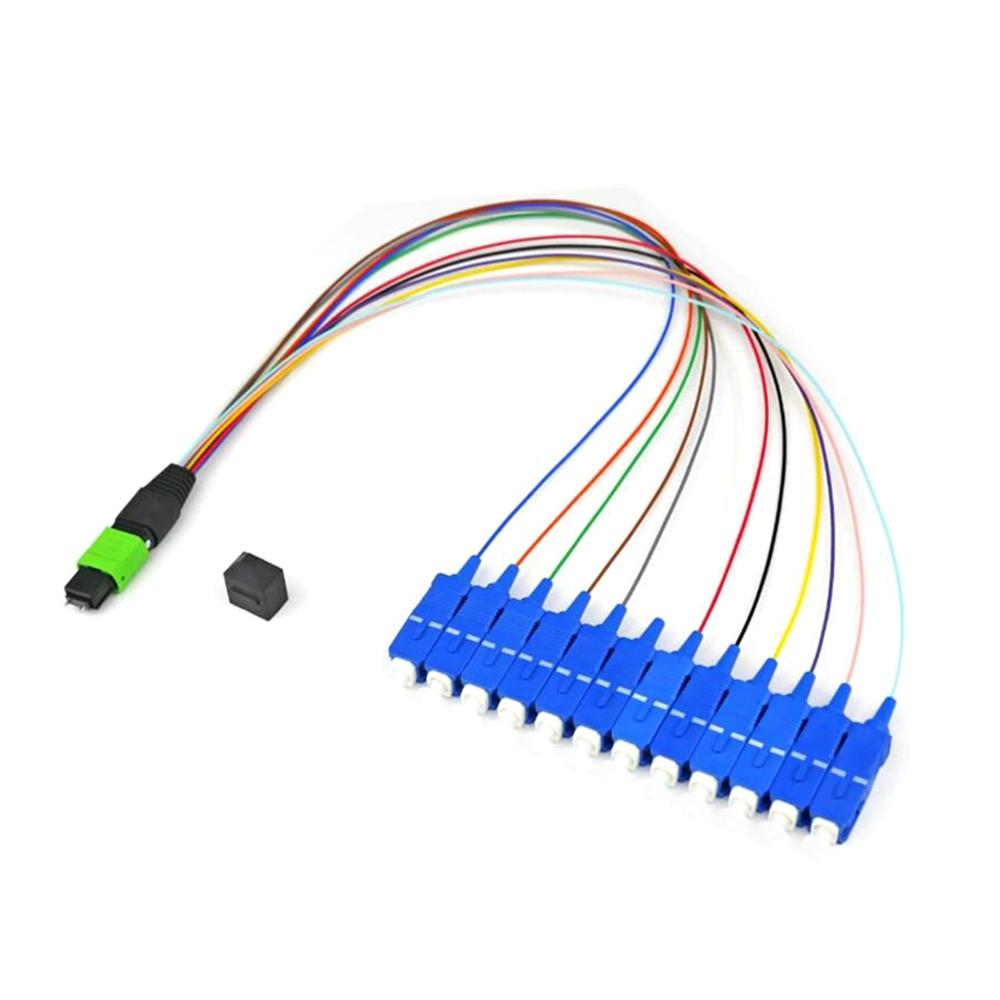

MPO Fanout Pigtail

MPO fiber cable is applicable in data and telecommunications systems. The MPO fiber cable connector offers up to 12 times the density of standard connectors, providing space and cost saving. It used the plug-in lock structure and easy to operate.

Features

Low insertion loss and high reflection loss
Good Durability,High stability
Good exchangeability
Male and female connector type
Muti core optical fiber connector
CATV
Optical fiber communication system
Data processing
test equipment



Specifications:


Insertion Loss dB	≤0.35
Return Loss dB	≥50 for PC, ≥65 for APC
Tensile dB	≤0.30( Max 66N)
Vibration dB	≤0.30 (10~ 50HZ)
Operating Temperature dB	≤0.30 ( -40°C ~ +75°C  5Cycles )
