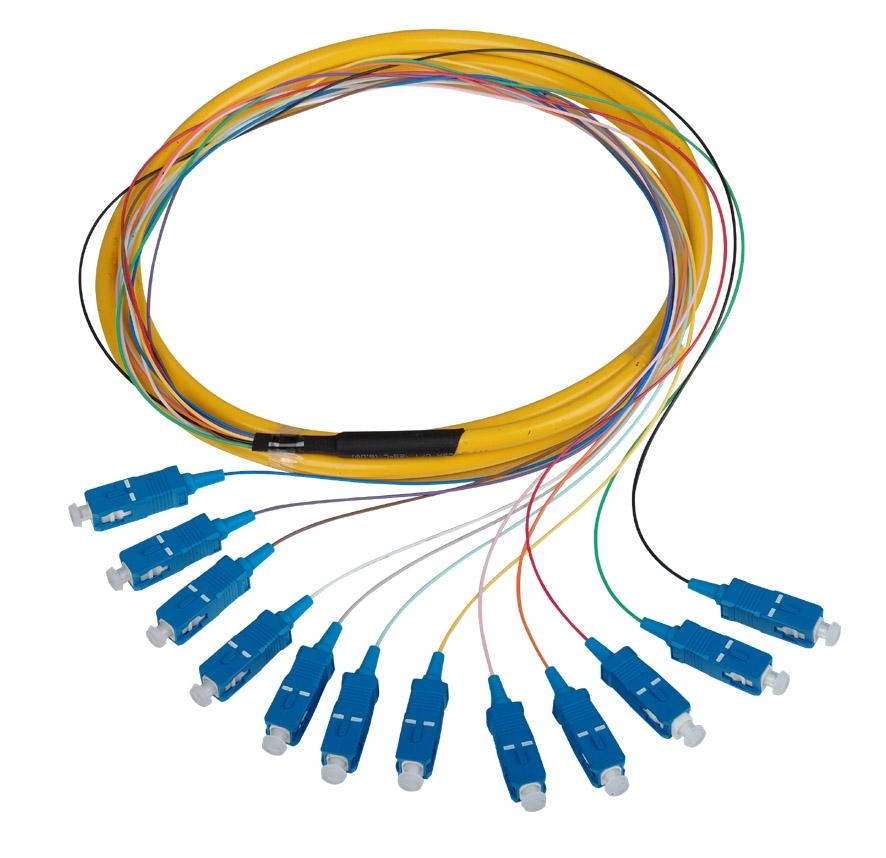

Fanout Pigtail SC

 sc lc fc  singlemode multimode fiber optical pigtails
   Features:
              · Many standard configurations in stock
· All standard fiber types available
· Many different cable designs available
· Many different connector options available
· 100% optical testing available
· 100% electronic testing available
· End face geometry (EFG) testing capabilities
· Design/engineering capabilities

    Application:
    •Optical access network
    •Optical-fiber CATV
    •A local area network(LAN)
    •Test Equipment
 Specification:

Parameter	LC,SC,ST,FC
	SM		MM
	UPC	APC	UPC
Operating Wavelength(nm)	1310/1550		850/1300
Insertion Loss(dB)	≤0.20	≤0.20	≤0.20
Return Loss(dB)	≥55	≥65	≥35
Repeatability Loss(dB)	≤0.1
Interchangeability Loss(dB)	≤0.20
Repeat Piug-pull Times	≥1000
Tensil Strength(N)	≥100
Durability Loss(dB)	≤0.20
Operating Temperature(℃)	-40℃~ +75℃
Storage Temperature(℃)	-40℃~85℃


 Fiber class:  Single-mode multimode

Polish type: UPC/APC

Cable color: as photos

Cable jacket: PVC LSZH(for your choice), cable diameter 0.9,1.6,1.8,2.0,3.0mm

Package: Seperate polybag with sticker and test reports

The cable Length and color  can be customized
