CPRI FTTA CABLE 4CORE

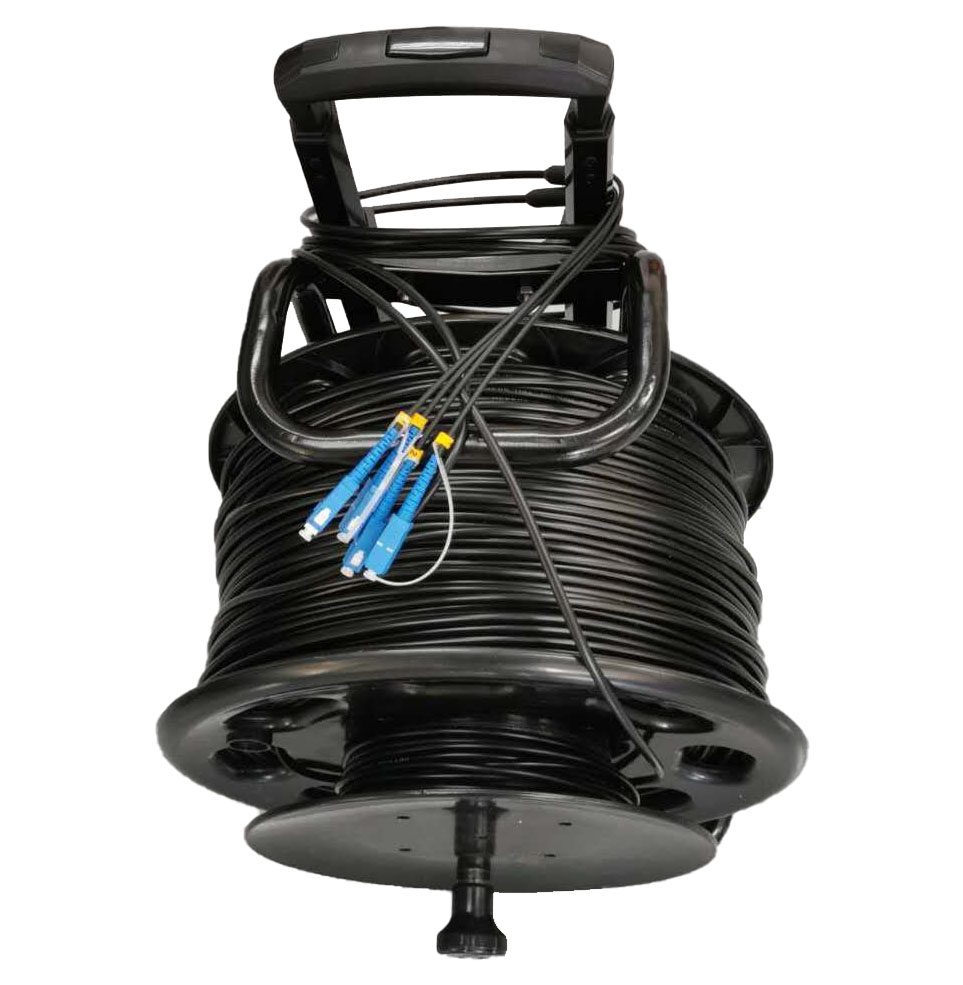

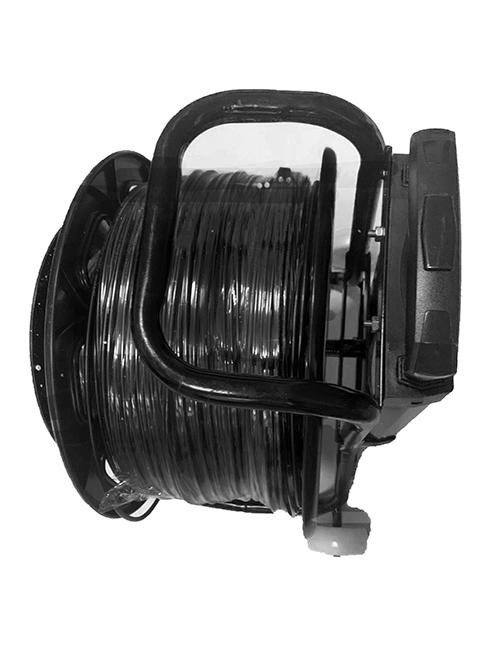

CPRI optical cable assembly, all armored cable, GYFJH 4B1(LSZH), Single mode, 4 core(2.0mm), 7.0mm, black jacket; with stainless steel tube protection.

No.	Part Name
1	Connectors
2	Breakout, stainless steel tube(armor)
3	Fan-out kit
4	Optical cable, all armored, GYFJH, , 7.0mm, LSZH black jacket


Specification
1. Single mode fiber

Item	Unit	Specification
Attenuation	dB/km	1310nm≤0.4 1550nm≤0.3
Dispersion	Ps/nm.km	1285~1330nm≤3.5 1550nm≤18.0
Zero dispersion wavelength	Nm	1300~1324
Zero dispersion slope	Ps/nm.km	≤0.095
Fiber cutoff wavelength	Nm	≤1260
Mode field diameter	Um	9.2±0.5
Mode field concentricity	Um	<=0.8
Cladding diameter	um	125±1.0
Cladding non-circularity	%	≤1.0
Coating/cladding concentricity error	Um	≤12.5
Coating diameter	um	245±10
bending, dependence        induced attenuation	1550nm,  1turns,32mm diameter  100rums,60mm diameter	≤0.5 db
Proof test	kpsi	≥100

Multi mode fiber

Item	Unit	Specification
Attenuation	dB/km	850 nm≤3.5 1300 nm≤1.5
Bandwidth	MHz·㎞	50/125um	62.5/125 um
		850 nm≥200	850 nm≥160
		1300 nm≥200	1300 nm≥200
Cladding diameter	um	125±1.0
Cladding non-circularity	%	≤1.0
Coating/cladding concentricity error	Um	≤12.5
Coating diameter	um	245±10
bending, dependence        induced attenuation	850nm,1300nm  100turns,75mm diameter	≤0.5 at 850 nm\1300 nm
Proof test	kpsi	≥100

2. Connector Specification

ITEM	PARAMETER
Connector type	LC/UPC, SC/UPC, FC/UPC, ST/UPC.	LC/APC, SC/APC, FC/APC, ST/APC
Insertion Loss	<=0.2db	<=0.3db
Return Loss	>=50db	>=60db
Fiber mode	Single-mode/ Multi-mode, G.652.D
Operating wavelength	1310, 1550nm
Test wavelength	1310,1550nm
Repeatability	<=0.1
Interchangeability	<=0.2dB
Durability	<=0.2dB
Fiber Length	1m, 2m….. any length optional.
Length and tolerance	10cm
Operating Temperature	-40C ~ +85C
Storage Temperature	-40C ~ +85C
