Attenuator

Fiber optic Attenuators are used in applications where a pre-determined amount of light loss is specified.

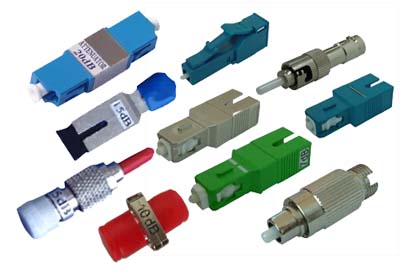

We offer LC, FC, SC, ST, MU fixed attenuator with different attenuation level, from 1dB to 30dB.

Key Features
· Bellcore Compliant
· Wavelength Independent
· Durability & Simple and Reliable Structure
Specifications
· Operating Wavelength: SM: 1310nm, 1550nm
· MM: 850nm, 1300nm
· Return loss: More than 55dB (UPC)
· Attenuation Accuracy: +/-0.5 (1~10) +/-1.0(11~30)
· Polarization Dependent Loss: Less than 0.2dB
· Max. Optical Input Power: 200mW
· Operating Temp Range: -40~80°C

Applications
· l  Telecommunication Networks
· l  Local Area Network
· l  FTTH and FTTx
· l  Fiber Optic Sensors
· l  Test & measurement
· l  DWDM applications
