simplex indoor cable

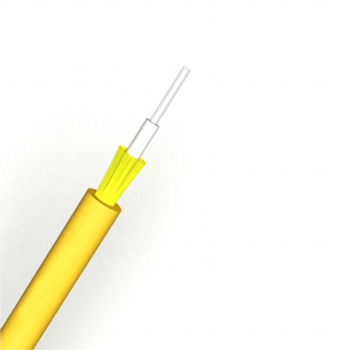

Simplex Tight buffer Single Fiber Patch Cord indoor Cable
Product Description
GJFJV Simplex cable use single 900um or 600um tight buffer fiber as optical commucation medium , the tight buffer fiber wrapped with a layer of aramid yarn as strength member uinits, and the cable is completed with a PVC or LSZH (low
smoke ,Zero halogen,Flame-retardant ) jacket.

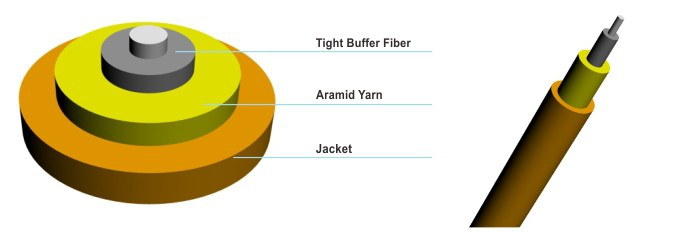

Product Construction:
Fiber:
1 fibers
900um or 600um  tight buffer fibers

Strength Member:
Kevlar yarns

Outer Jacket:
Flame resistant PVC or LSZH

Features:

· Tight buffer fiber easy of stripping.
· Tight buffer fiber have excellent flame-retardant performance.
· Aramid yarn as strength member make cable have excellent tensile strength.
· The outer jacket material have many advantages such as anti-corrosion, anti
· -water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.

Applications:
· Optical fiber jumper or pigtail.
· Indoor riser level and plenum level cable distribution.
· Interconnect between instruments, communication equipments.

Options:
Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber  and OM1, OM2, OM3, OM4 muti mold fiber.

Optical Characteristics


Fiber Type	Attenuation		Overfilled launch Bandwidth	Effective Modal Bandwidth	10GB/S Ethernet link length	Min Bending Radius
Conditions	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22					16
G657A1	0.36/0.22					10
G657A2	0.36/0.22					7.5
50/125		3.0/1.0	≥500/500			30
62.2/125		3.0/1.0	≥200/500			30
OM3		3.0/1.0	≥1500/500	≥2000	≥300	30
OM4		3.0/1.0	≥3500/500	≥4700	≥550	30
B1-OM3		3.0/1.0	≥1500/500	≥2000	≥300	7.5
B1-OM4		3.0/1.0	≥3500/500	≥4700	≥550	7.5


Structure and Technical Specification

Cable Code	Cable Diameter             (mm)	Cable Weight         (kg/km)		TBF Diameter       (μm)	Tensile Strength        (N/100mm)		Crush Resistance        (N/100mm)
		PVC jacket	LSZH jacket		Short Term	Long Term	Short Term	Long Term
1.6	1.6±0.2	2.4	2.6	600±50	40	80	500	100
1.9	1.9±0.2	3.5	4.5	900±50	60	100	500	100
2.8	2.8±0.2	6.0	7.5	900±50	60	100	500	100
